Reversal polarity protector (CB21581E)

Details
Written by: Newton C. Braga

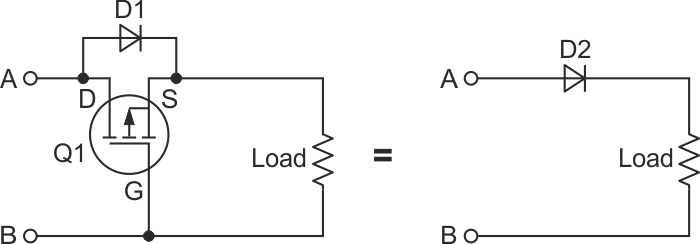

This circuit provides reverse power polarity protection using a power MOSFET and a diode. The MOSFET must be current in accordance with the current of the protected circuit.
