Tunable UHF Oscillator (CB21144E)

Details
Written by: Newton C. Braga

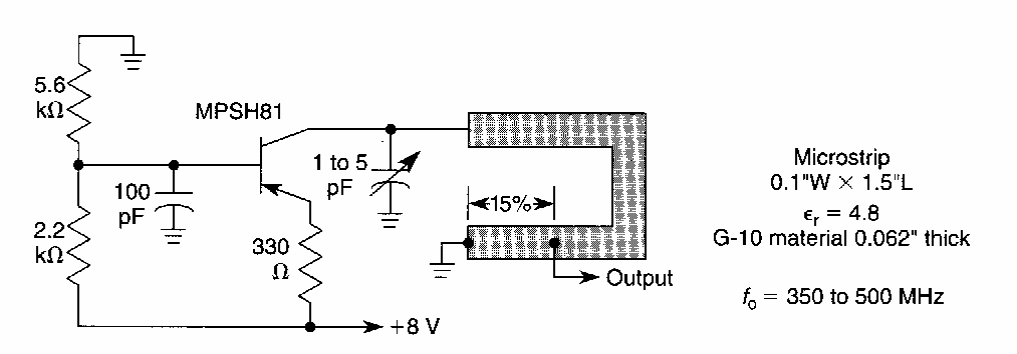

Found in American documentation from the 1990s, this circuit generates signals in the 350 to 500 MHz range. The output power is in the order of 100 mW at 50 ohms.
