78xx regulator with logic control (CB21215E)

Details
Written by: Newton C. Braga

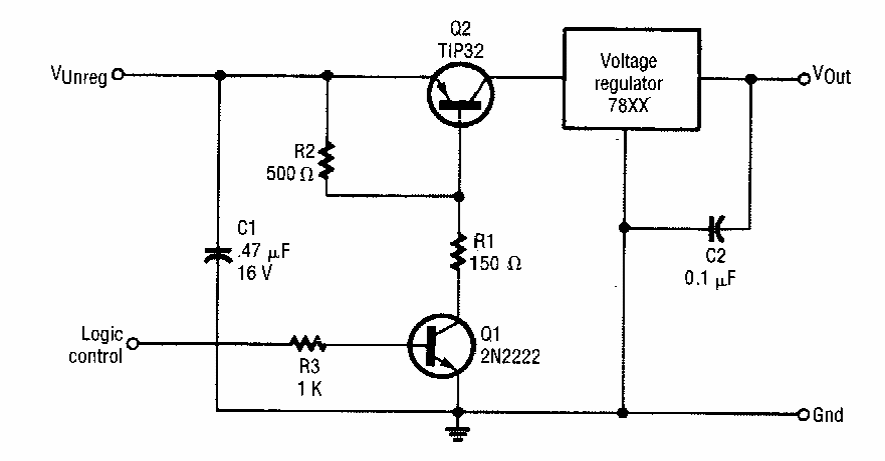

This regulator can be controlled by a logic signal. The circuit is from an Electronics Now from the 90s. Note that the switching transistor is before the integrated circuit.
