Two-Tone Generator 555 (CB21238E)

Details
Written by: Newton C. Braga

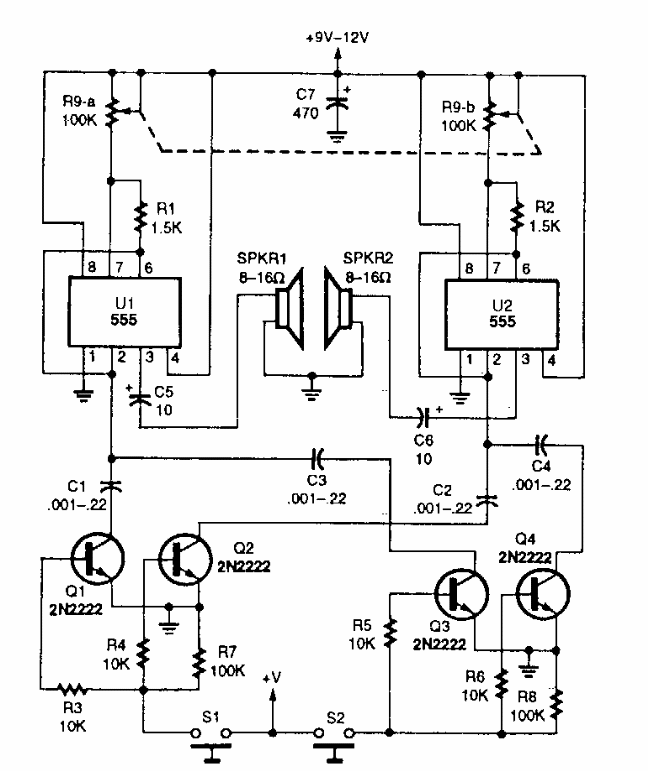

Found in Popular Electronics from the 90's, this circuit uses 555 integrated and common transistors to generate two tones determined by push buttons S1 and S2.




| Clique na imagem para ampliar |
