Full Wave Neon (CB21454E)

Details
Written by: Newton C. Braga

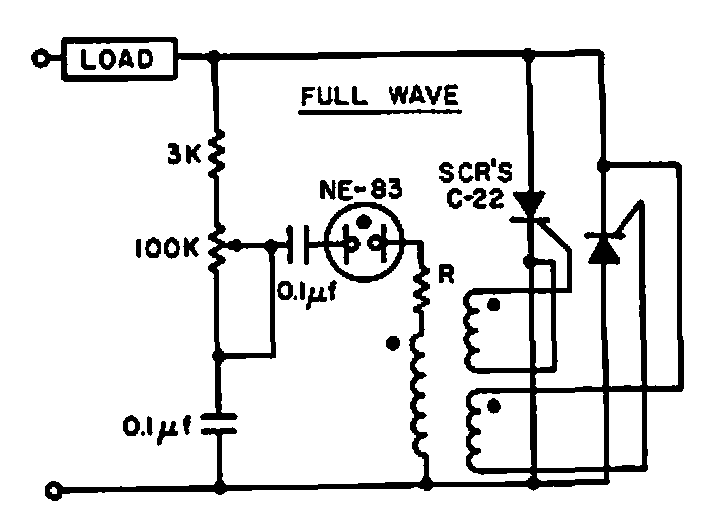

This circuit for SCR triggering using a neon lamp in a full wave system was found in a 1968 US documentation. No details of the pulse transformer were given.
