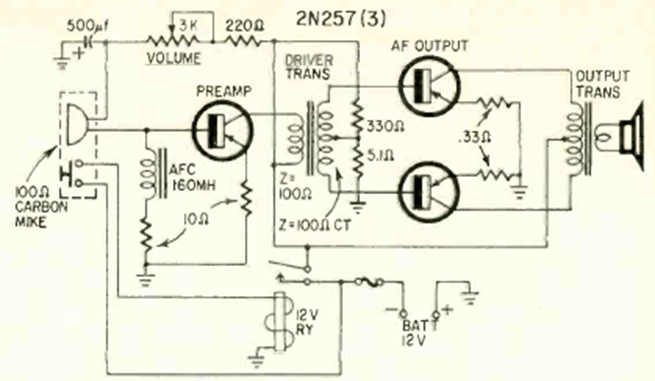

This high-powered megaphone circuit is from a Radio Electronics from December 1964. Note the use of a carbon microphone, a rare component nowadays. Transformers are also critical components, common at the time.
| Clique na imagem para ampliar |
Megaphone (CB23631E)
- Details
- Written by: Newton C. Braga
