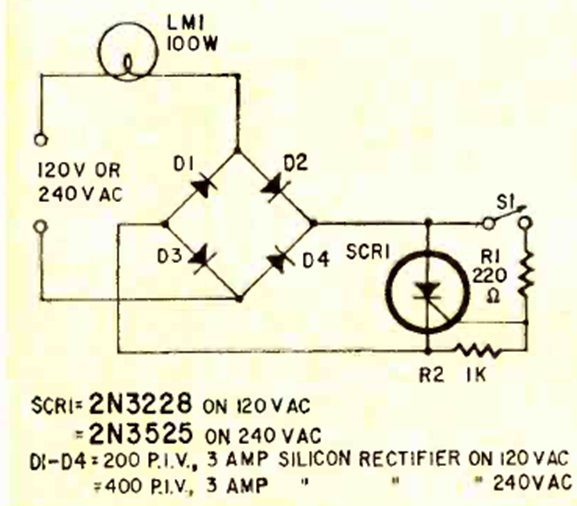

Full-wave switch with SCR (CB23950E)

Details
Written by: Newton C. Braga



This circuit was obtained from a Radio Electronics magazine from June 1969. The circuit uses a power SCR according to the load and the diodes must have the same current capacity.
