Low Voltage Test (CB22158E)

Details
Written by: Newton C. Braga

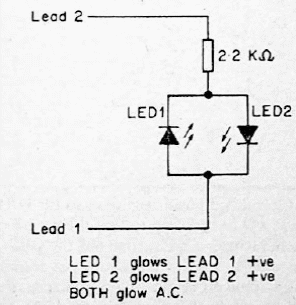

This is a simple voltage tester for voltages from about 2V to about 15V with the indicated resistor and red LEDs.
