Inductance meter (CB23696E)

Details
Written by: Newton C. Braga

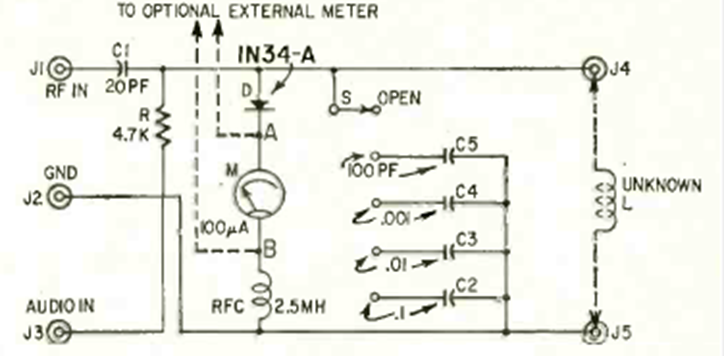

This inductance bridge uses an external audio signal. The circuit is from a Radio Electronics from January 1966. The instrument can be a common multimeter in the lowest current range.
