Audio Relay (CB23686E)

Details
Written by: Newton C. Braga

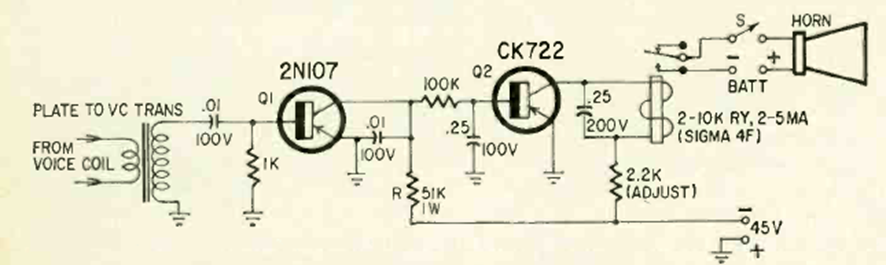

This circuit activates a horn from an audio signal. This can be used for remote control via audio signals. The circuit is from a Radio Electronics from October 1965.
