Compensated monostable (CB24336E)

Details
Written by: Newton C. Braga

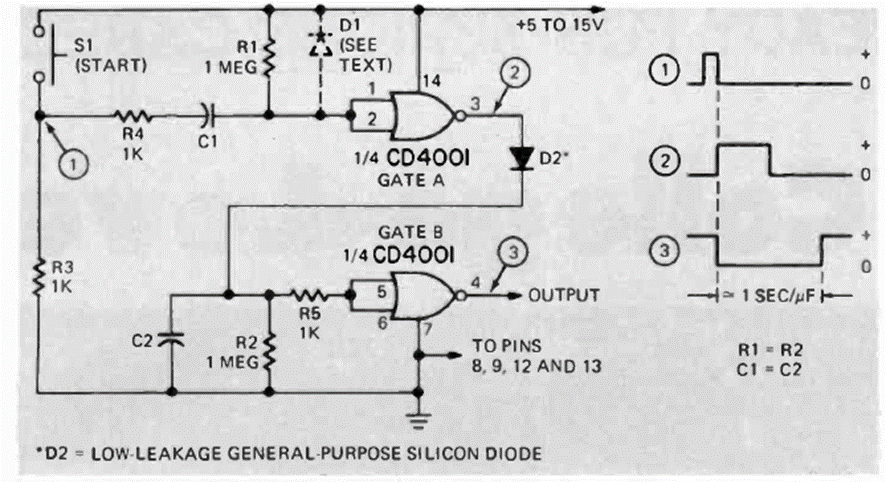

We found this circuit in the November 1974 Radio Electronics magazine. The capacitors determine the output time, and it is normal to obtain 1 second for each uF used.
