Window Comparator II (CB24974E)

Details
Written by: Newton C. Braga

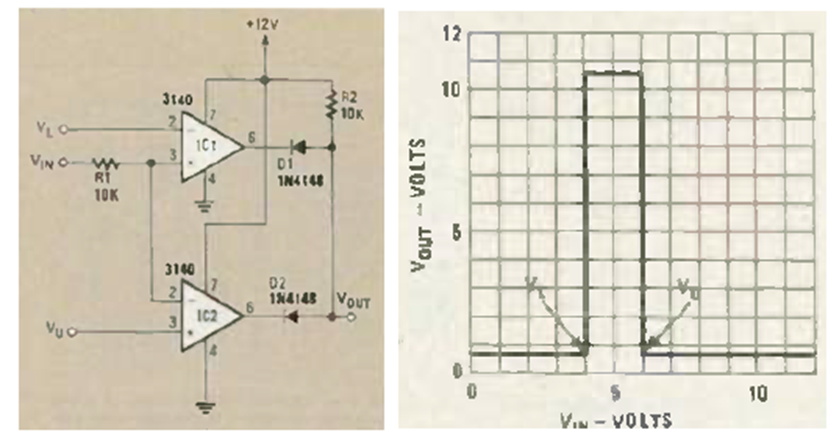

Unlike the previous circuit, the output of this one goes high in the window voltage range. The circuit is from Radio Electronics from June 1986 and is based on the CA3140.
