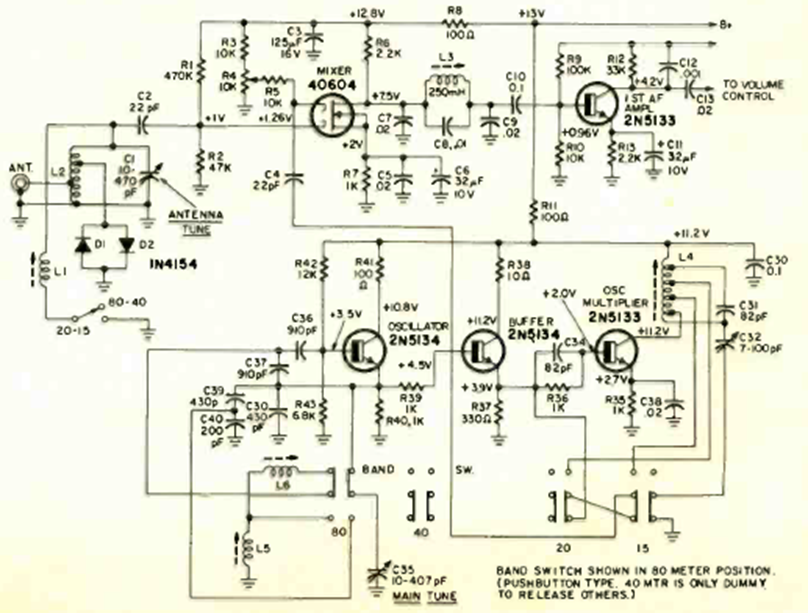

We found this synchrodyne receiver for the medium or short-wave band in the Radio Electronics magazine of February 1973. The transistors are types of the time, and the use of an external antenna is recommended.
| Clique na imagem para ampliar |
Synchrodyne Receiver (CB24243E)
- Details
- Written by: Newton C. Braga
