TTL 555 Sequential (CB24672E)

Details
Written by: Newton C. Braga

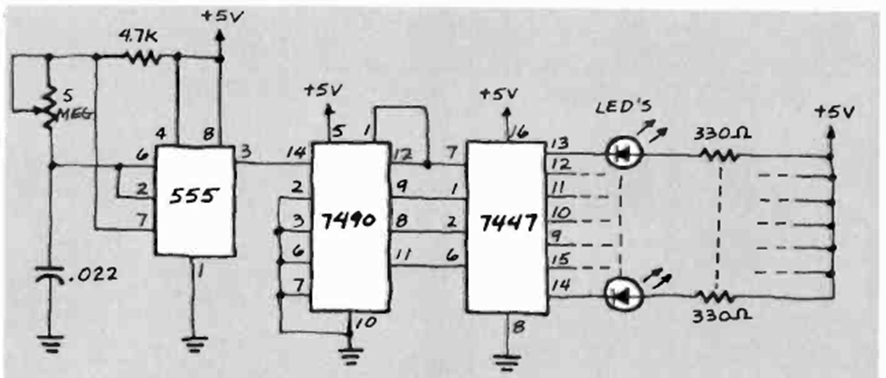

This TTL circuit has a well-known configuration, having been found in a Radio Electronics magazine from December 1980. The power supply must be 5 V.
