Alarm with 4001 (CB24373E)

Details
Written by: Newton C. Braga

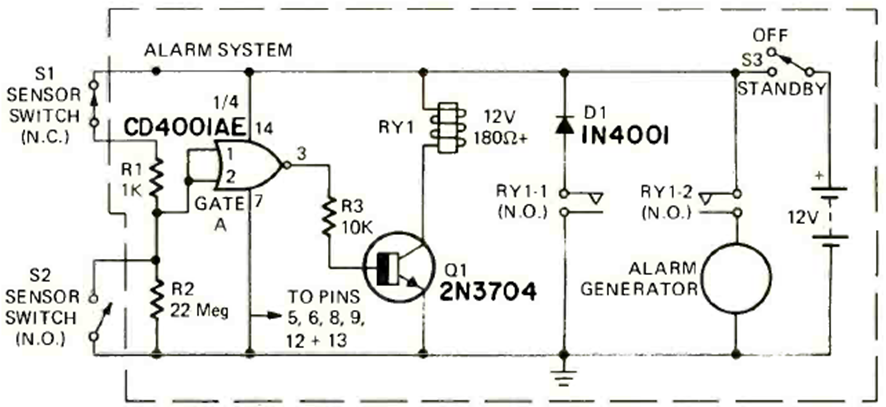

This alarm circuit was found in April 1975 Radio Electronics magazine. The circuit uses a 12 V power supply and relay but can be modified to work with other voltages.
