7910 Melody Generator (CB24690E)

Details
Written by: Newton C. Braga

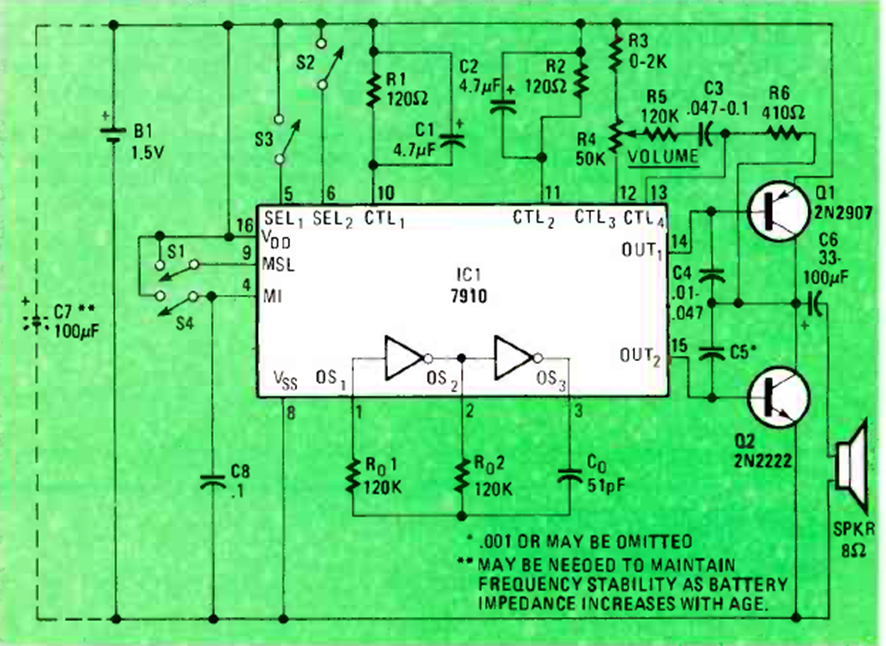

This circuit was found in the March 1982 Radio Electronics magazine. The component is a special circuit that generates programmed melodies selected by the switches.




| Clique na imagem para ampliar |
