kHz Crystal Oscillator (100)

Details
Written by: Newton C. Braga

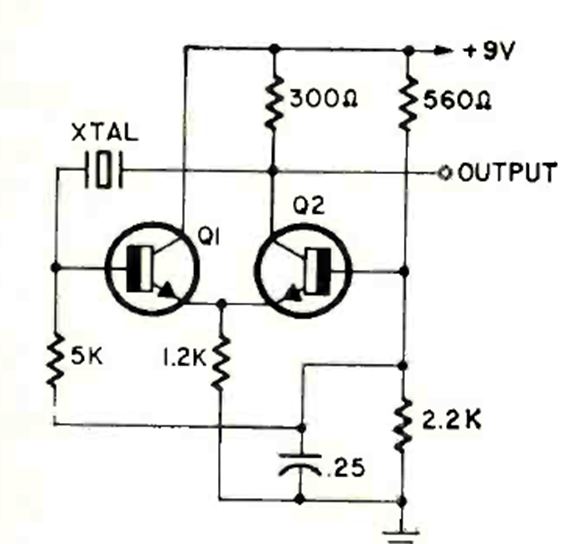

This circuit was found in the Radio Electronics magazine in an article about emitter-coupled circuits. The 100 kHz frequency is given by the crystal, but crystals of other frequencies can be used.
