1 kHz Oscillator (CB24012E)

Details
Written by: Newton C. Braga

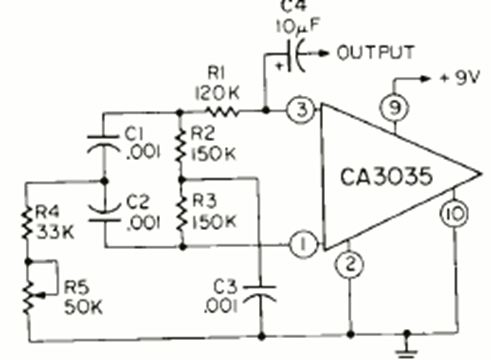

This double-T sine wave oscillator uses a CA39035, an integrated circuit released by RCA at the time. The circuit is from a Radio Electronics magazine from February 1970.
