Multi-Sensor Alarm (CB24171E)

Details
Written by: Newton C. Braga

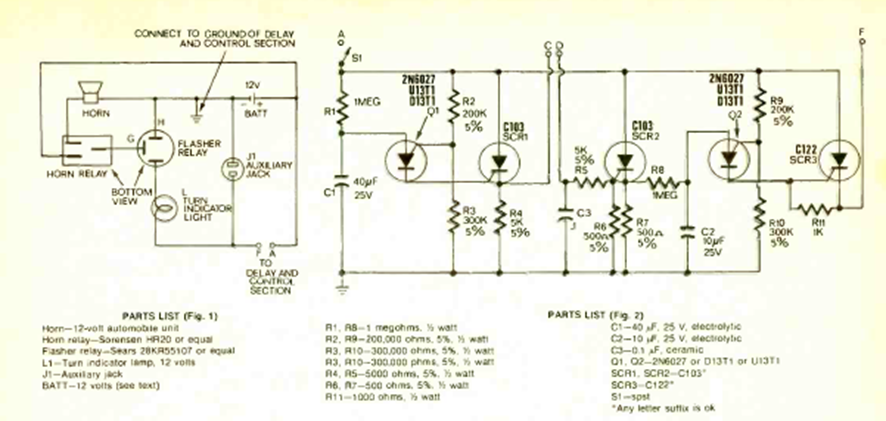

We found this circuit in an article in Radio Electronics magazine from November 1971. The circuit has several sensor inputs and is based on programmable unijunction transistors or PUTs.
