3V Battery Tester (CB24090E)

Details
Written by: Newton C. Braga

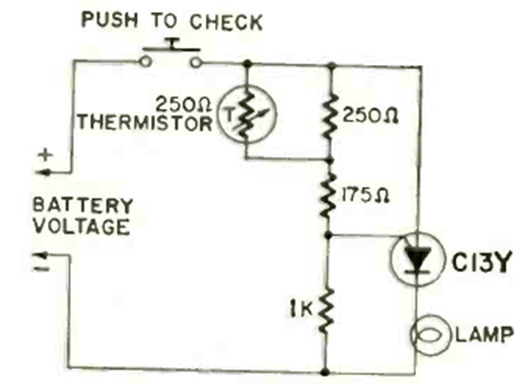

We found this circuit in a November 1970 Radio Electronics. It uses a PUT or programmable unijunction transistor and an indicator lamp.
