Regulated symmetrical source (CB24512E)

Details
Written by: Newton C. Braga

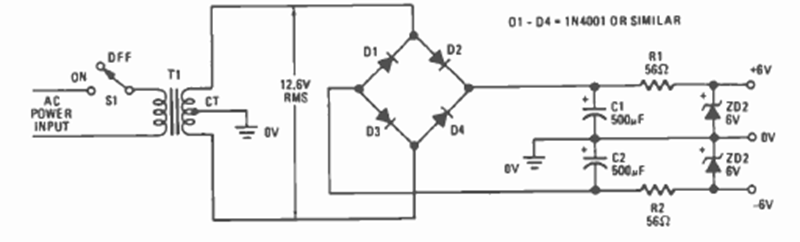

We found this circuit in the Radio Electronics magazine of May 1977. The transformer voltage is 6 + 6 V, and the current depends on the zener diodes and is in the order of 100 to 200 mA.




| Clique na imagem para ampliar |
