Telephone control in use (CB24431E)

Details
Written by: Newton C. Braga

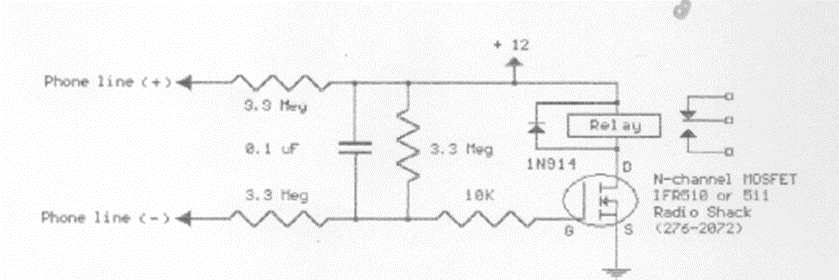

This circuit for old analog telephones is from period documentation. It controls a relay that can be used to turn the extension on and off.
