Sophisticated Temperature Alarm (CB24164E)

Details
Written by: Newton C. Braga

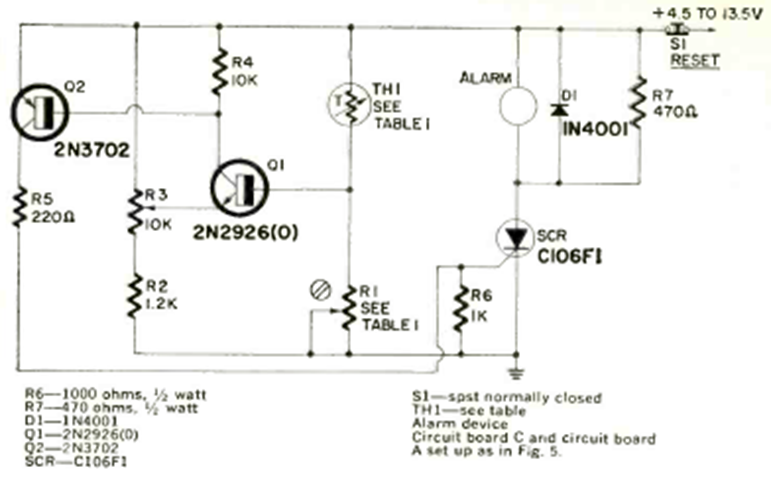

This two-transistor circuit was found in the September 1971 issue of Radio Electronics magazine. The sensor is an NTC and sensitivity adjustment is via R1.




| Clique na imagem para ampliar |
