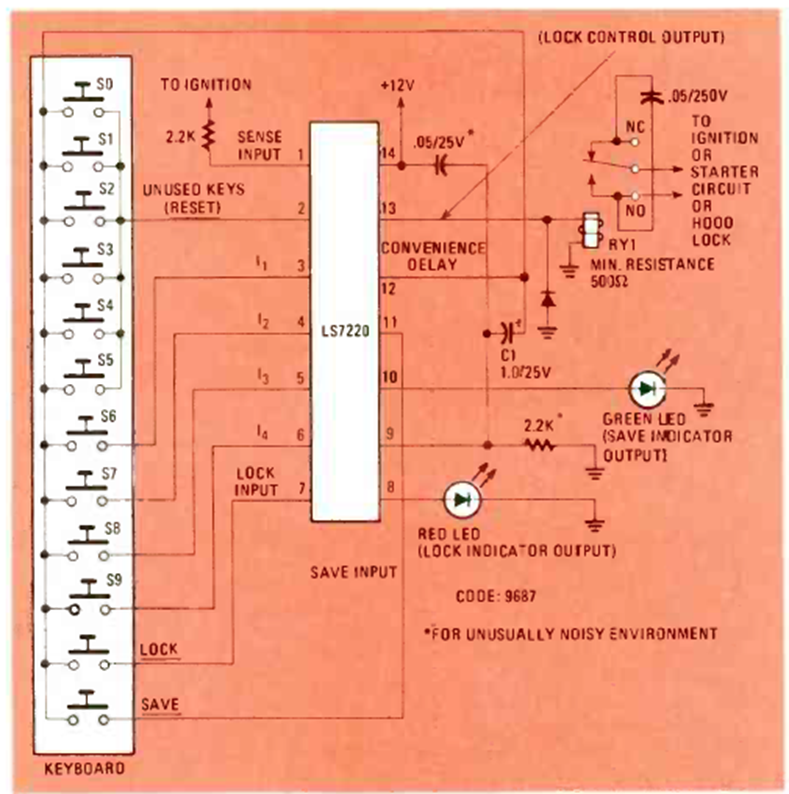

We found this circuit in a Radio Electronics magazine from January 1983. It uses an integrated circuit specifically for this type of application. The circuit activates a relay if the correct switch combination is pressed.
