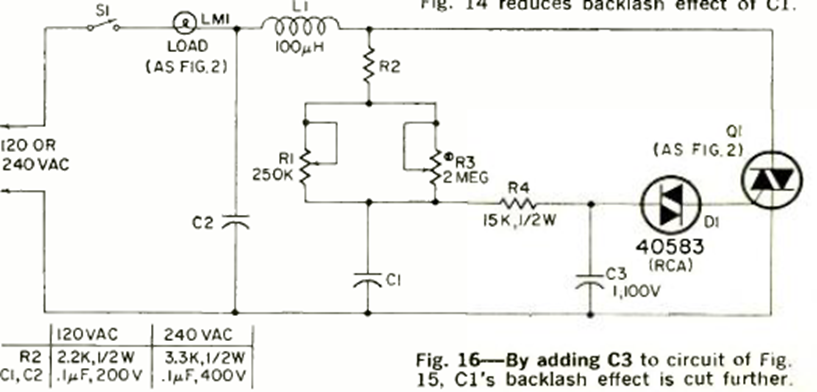

This version of the previous circuit, also from Radio Electronics magazine of July 1970, uses R4 and C3 for better performance. The triac is load-dependent and must be equipped with a heat sink.
| Clique na imagem para ampliar |
Improved dimmer with triac (CB24056E)
- Details
- Written by: Newton C. Braga
