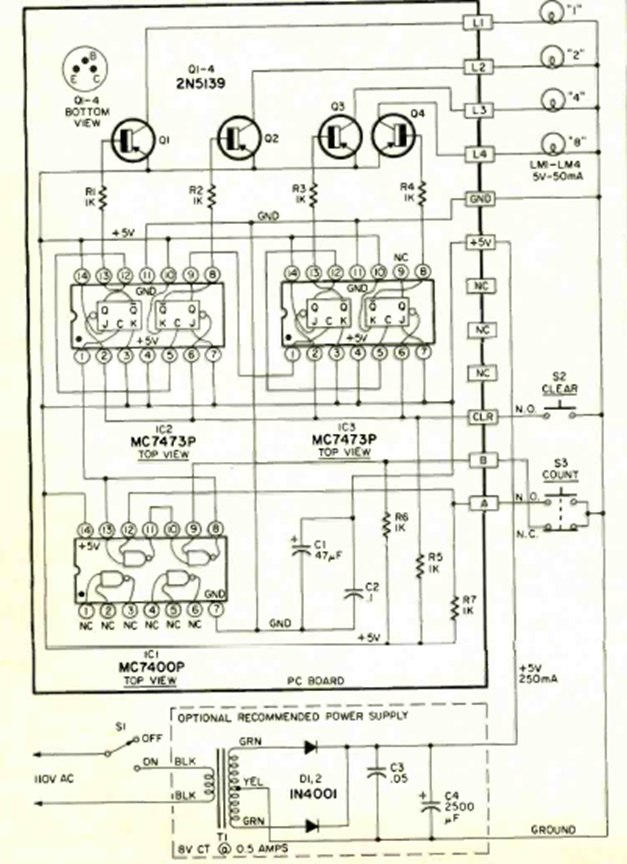

This TTL instructional circuit appeared in the February 1972 issue of Radio Electronics magazine. 5 V is supplied, and indicator lamps are used. The circuit is 4-bit.
Binary Demonstrator (CB24177E)
- Details
- Written by: Newton C. Braga
This TTL instructional circuit appeared in the February 1972 issue of Radio Electronics magazine. 5 V is supplied, and indicator lamps are used. The circuit is 4-bit.
