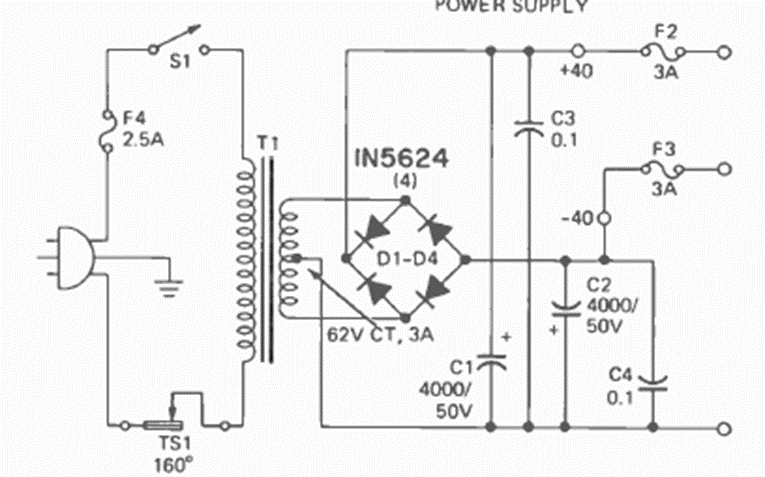

This is the power supply for the amplifier in the previous circuit. We found it in the same Radio Electronics magazine from March 1973. The transformer is 62 V x 3 A and the power supply is symmetrical.
| Clique na imagem para ampliar |
Power supply for the 60 W amplifier (CB24249E)
