LM386 Gain (CB26108E)

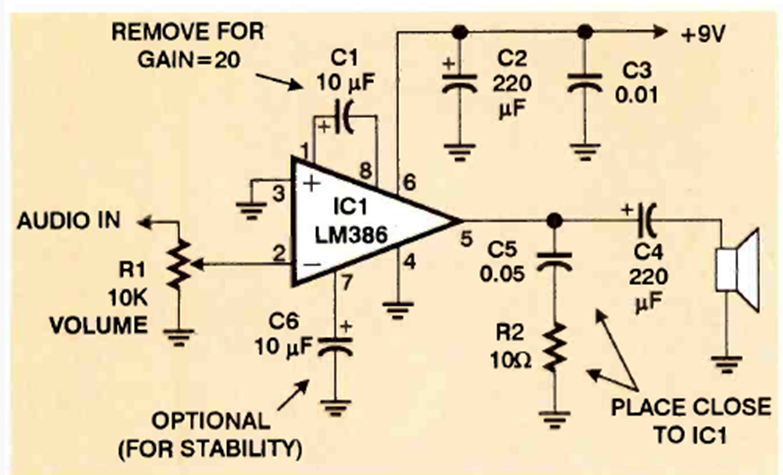

In the diagram from the November 1999 Electronics Now magazine we have the way to improve both the gain and the stability of the LM386 amplifier.

| Clique na imagem para ampliar |
