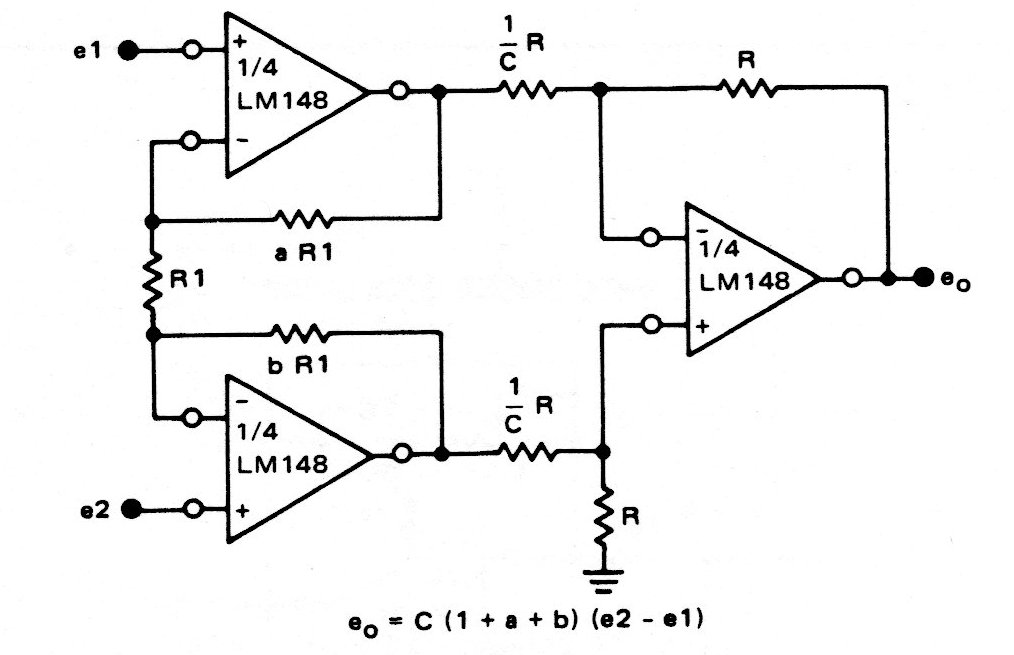

High Impedance Differential Amplifier LM148 (CIR2854E)

Other operational amplifiers can be used in this circuit obtained from the manufacturer's own manual. The circuit should use.

| Clique na imagem para ampliar |
