Electronic Drums (CB26221E)

Details
Written by: Newton C. Braga

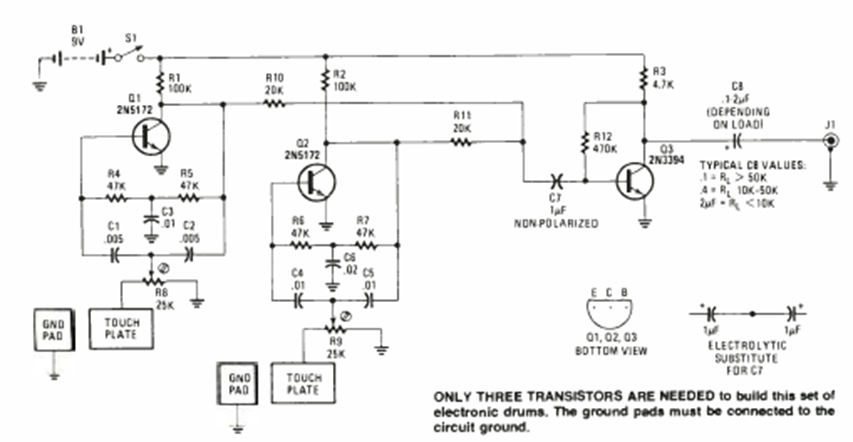

The sound of drums can be obtained with these two touch-triggered double-T oscillators. The circuit is from a Radio Electronics Special projects from 1993.




| Clique na imagem para ampliar |
