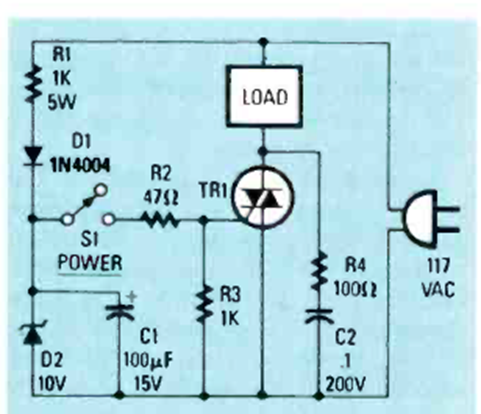

Triac Switch with DC Triggering (CB25072E)

This circuit was found in the October 1987 Radio Electronics magazine. The triac must be matched to the load it controls and mounted on a heat sink.
