Very Low Frequency Clock (CB26103E)

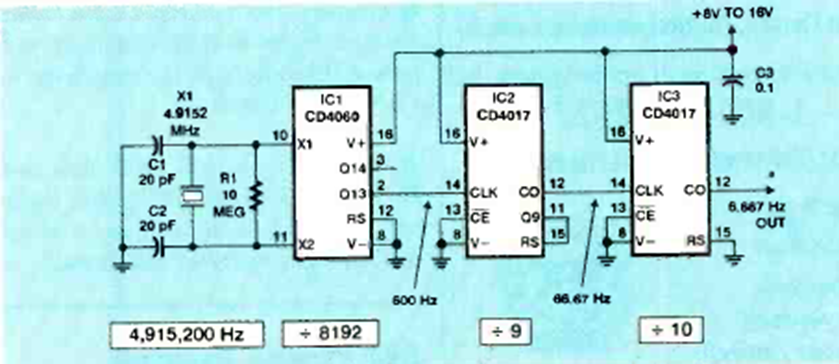

Found in the November 1999 issue of Electronics Now magazine, this circuit generates a 6.67 Hz signal from a 4.1952 Hz crystal.
