Undervoltage Monitor (CB25090E)

Details
Written by: Newton C. Braga

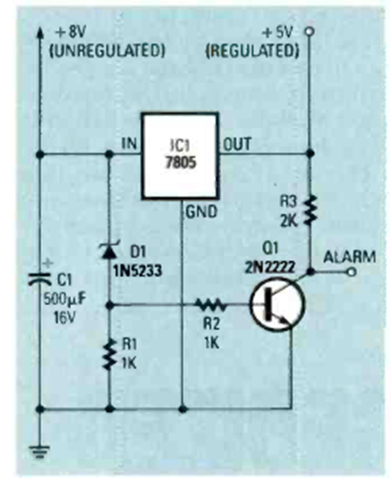

This circuit was found in the November 1987 Radio Electronics magazine. The trigger voltage is determined by the zener diode which can be changed.
