Isolated Converter 5 x 5 V DCP10505 (CB26063E)

Details
Written by: Newton C. Braga

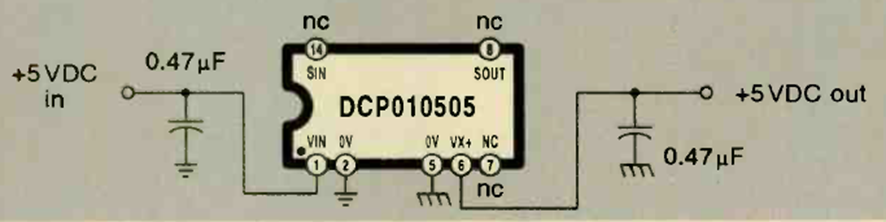

This isolated circuit converts 5 V to 5 V x 50 mA with isolation up to 1,000 V. We found it in the August 1998 issue of Electronics Now. The integrated circuit used is not very common today.
