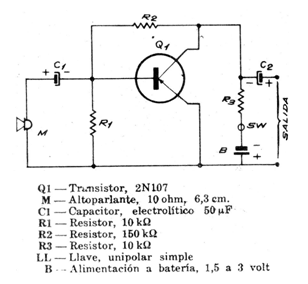

With this preamplifier it is possible to use a small speaker as a microphone. The circuit is also suitable for low-impedance microphones. The power can be supplied by one or two batteries. The transistor may be more modern like the BC558 and changes in R1 may be required to achieve better performance.
