Third Order 1 kHz High Pass Filter (CB1459E)

Details: Written by: Newton C. Braga

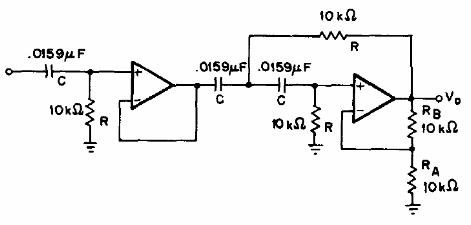

This circuit has been obtained from a technical documentation on filters from 1977. The operational amplifiers are 741. The components can be changed for operation at other frequencies. The power supply must be symmetrical.
