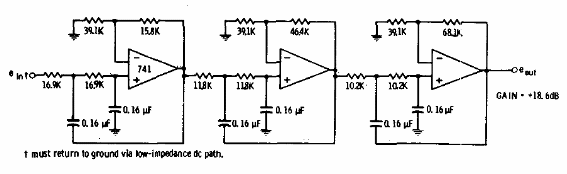

This circuit was originally designed for medical applications and biological experiments. The circuit is from a 1975 filter publication. The power must be symmetrical and the operational amplifiers should be the 741. The frequency rejection above 15 Hz is 30 dB.
