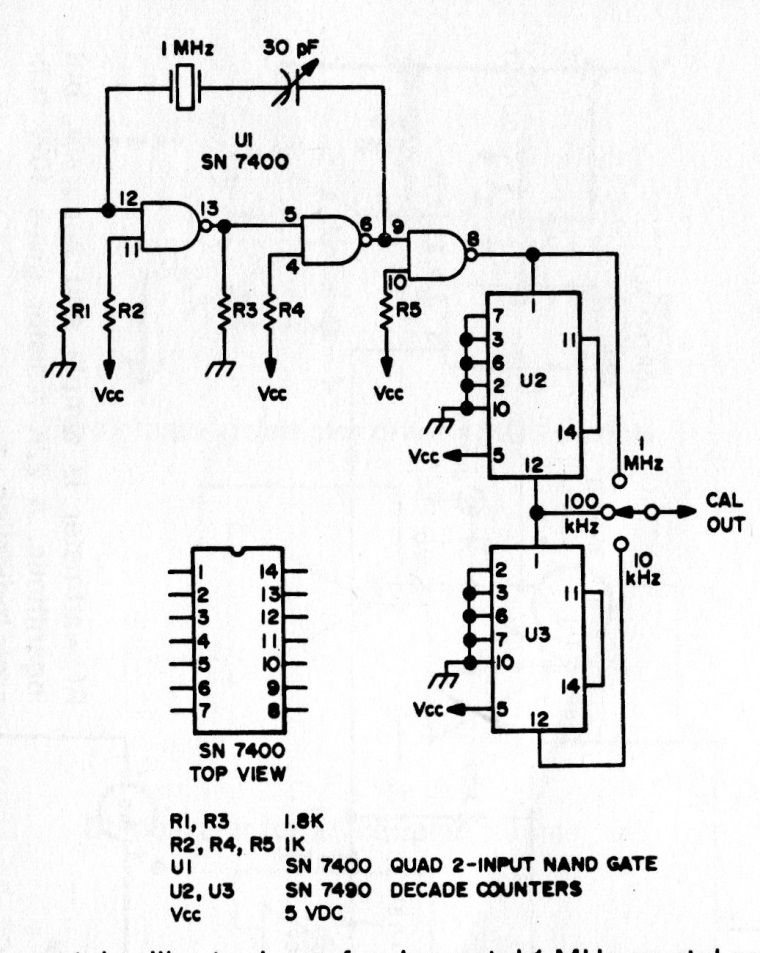

With the precision given by the crystal this circuit provides signals of several frequencies for the calibration of circuits. The fundamental frequency is 1 MHz and the circuits used are TTL common with the 5 V supply.
