Long Interval Timer LF355 (CB3996E)

Details
Written by: INCB

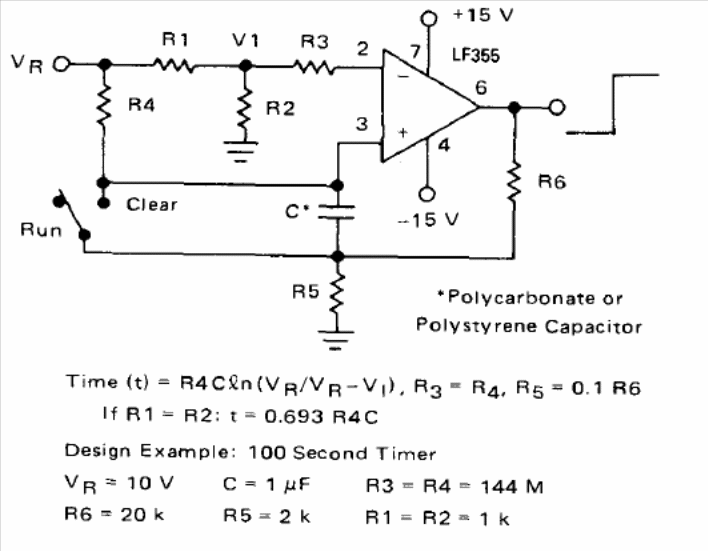

    This timer for long time intervals is from the 1990 Motorola Linear Databook. The setting applies to other operational ones and component values are given below the diagram.




| Clique na imagem para ampliar |
