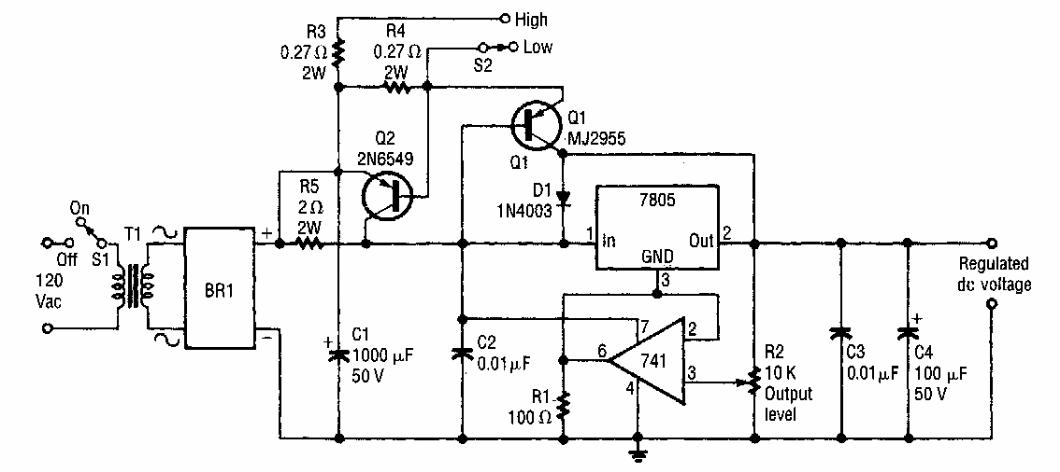

This circuit was found in an Electronics Now from the 90's. The integrated regulator circuit and the power transistor must be equipped with heat radiators.
