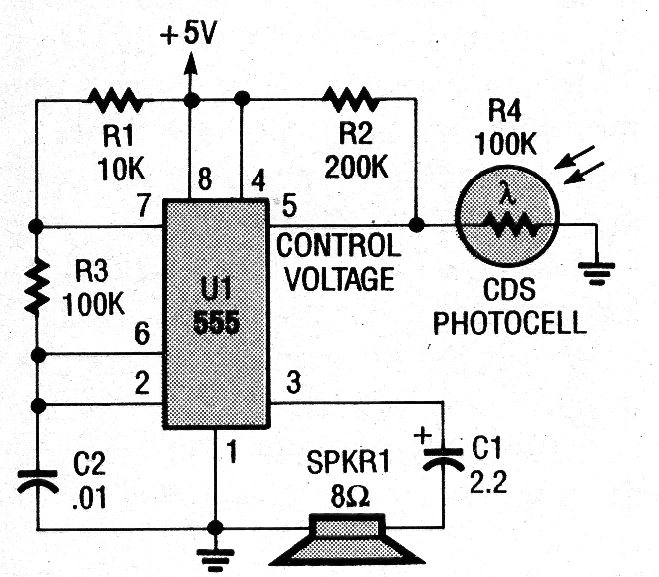

The frequency of this oscillator depends on the amount of light incident on the LDR. The circuit, in fact, can be powered by voltages between 5 and 12 V. The main tone depends on C2. The circuit is from an American publication of 1993.
