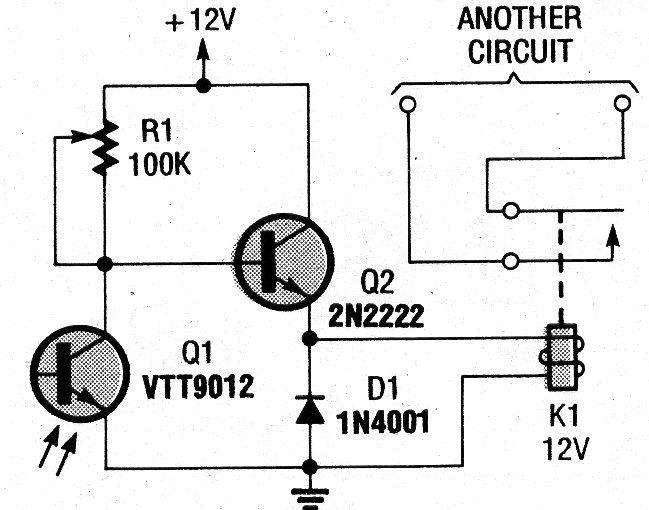

When light fails to focus on the sensor, a common photo-transistor, the relay closes its contacts. The circuit has its sensitivity set at R1 and can be powered by voltages from 6 to 12 V depending on the relay. We found this setup in an American publication of the 1990s.
