Dummy Load and RF Wattmeter (CB3879E)

Details
Written by: Newton C. Braga

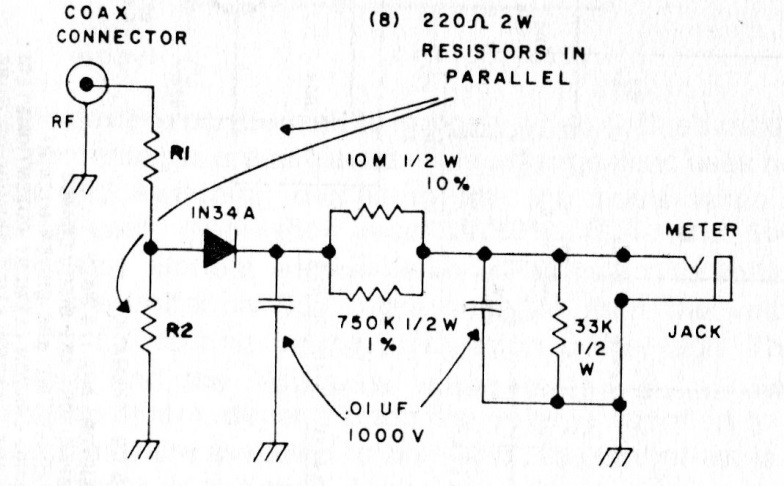

    The resistors R1 and R2 consist of 8 220 ohms x 2 W resistors connected in parallel. The dissipation must be higher for high transmitter power. The indicator can be the multimeter.
