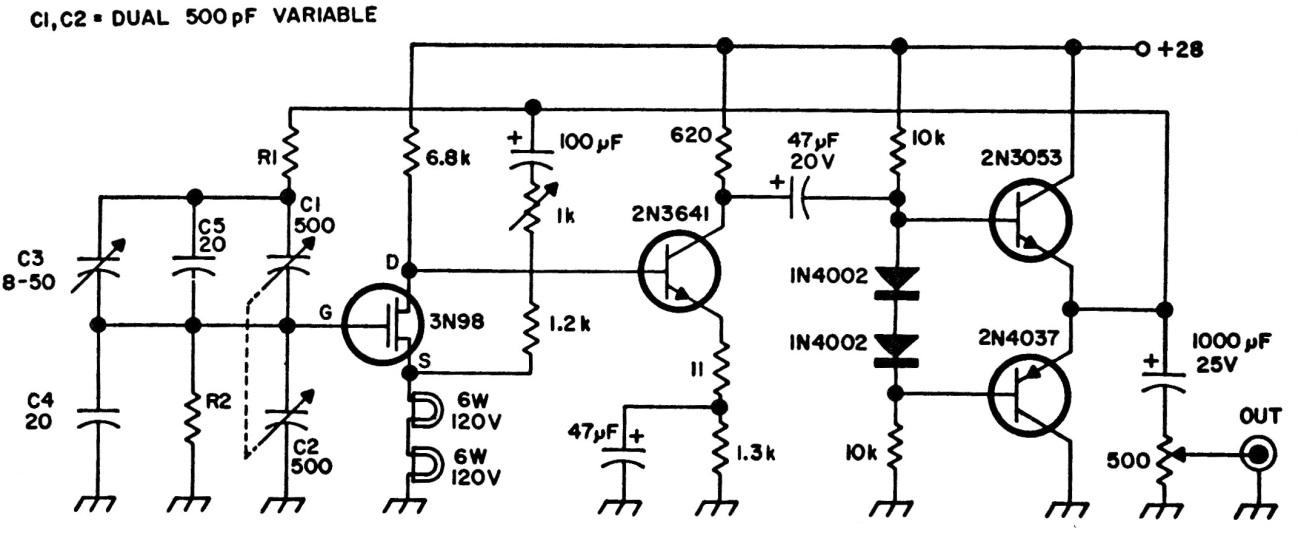

This circuit generates low-frequency sinusoidal signals. The variable capacitor is dual and the lamps function as regulators because of their non-linear voltage x current characteristics. The circuit was found in an old American documentation and the transistors admit equivalents.
