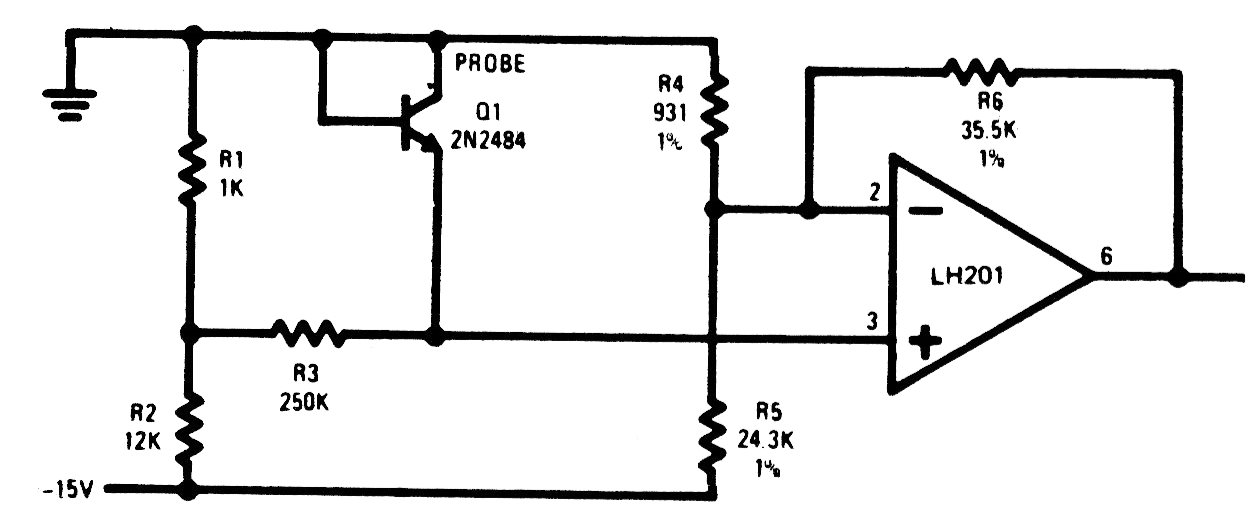

This circuit uses a metal enclosed transistor as a temperature sensor. The circuit is from an old documentation on operational amplifiers. The source must be symmetrical and as a sensor we suggest the use of an old BC107.
