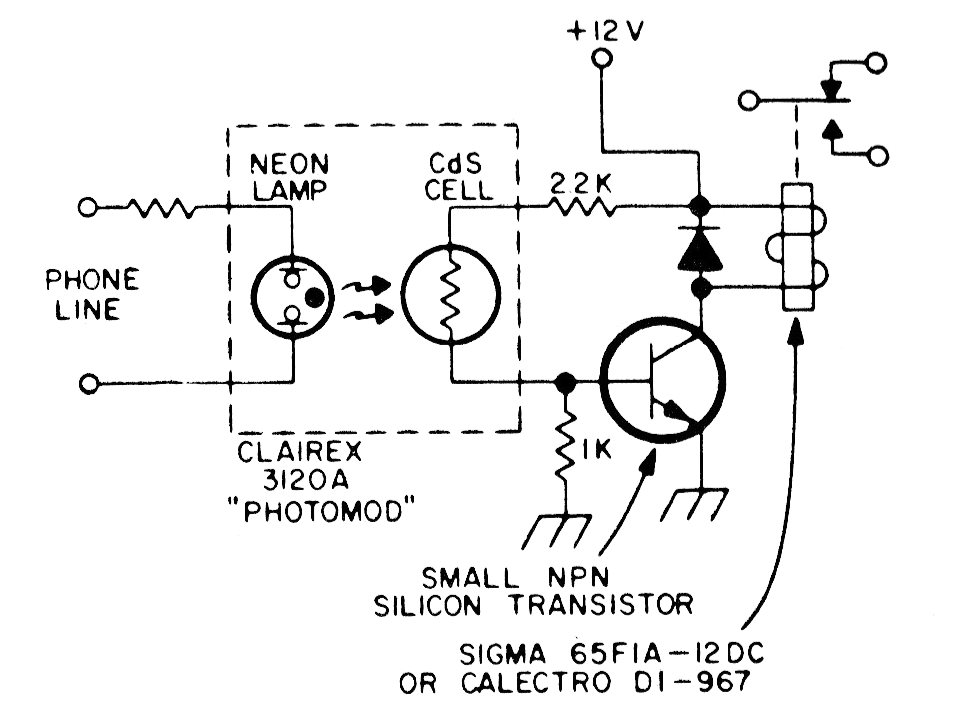

This circuit is a documentation of the 70's and therefore valid for analog lines. What the circuit does is to trigger a relay with the call signal through an optical coupler with a neon lamp. A more modern version can be elaborated based on an LED coupler.
| Clique na imagem para ampliar |
