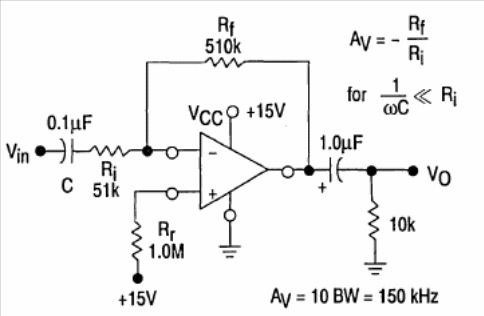

Inverter Amplifier LM3900 (CB4502E)

Details: Written by: Newton C. Braga

Other series amplifiers such as the MC3301, MC3401 and LM2900 can be used on this circuit. We found this gain 10 configuration on Motorola's Linear Interface ICs. The power supply need not be symmetrical.
