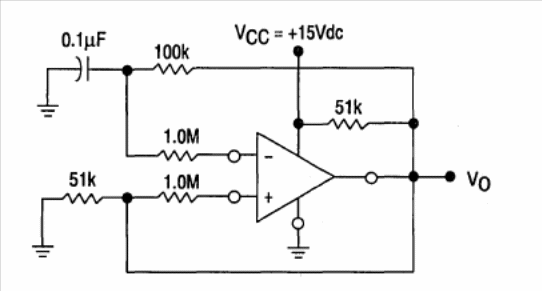

Other series amplifiers such as the MC3301, MC3401 and LM2900 can be used on this circuit. We found this setting on Motorola's Linear Interface ICs. The power supply need not be symmetrical. The frequency is given by the capacitor.
