Audible Flasher (CB4389E)

Details
Written by: Newton C. Braga

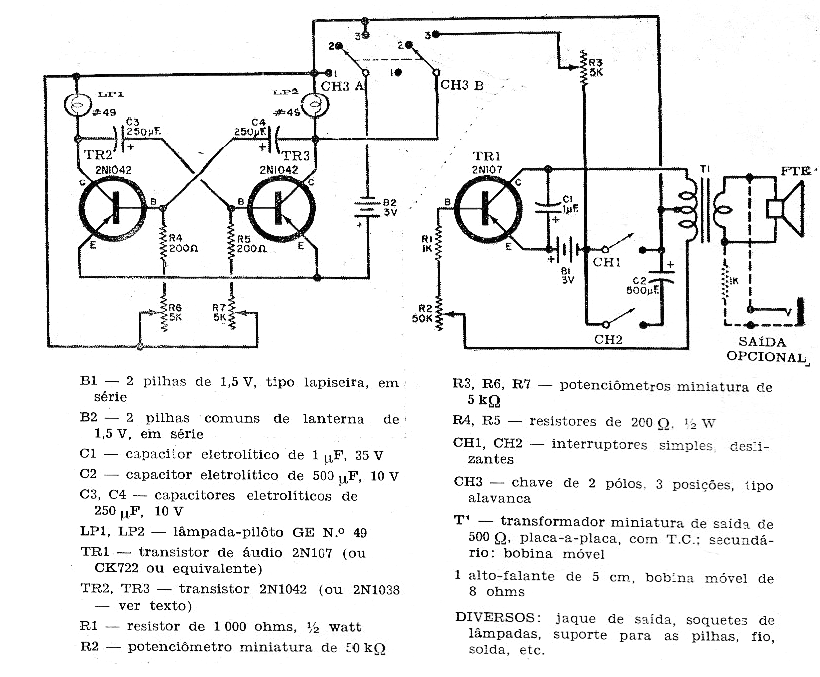

This circuit, obtained from a 1965 magazine, can still be assembled using some modern equivalent components. The transistors may be BC558 and the transformer is obtained from a disused transistor radio.




| Clique na imagem para ampliar |
