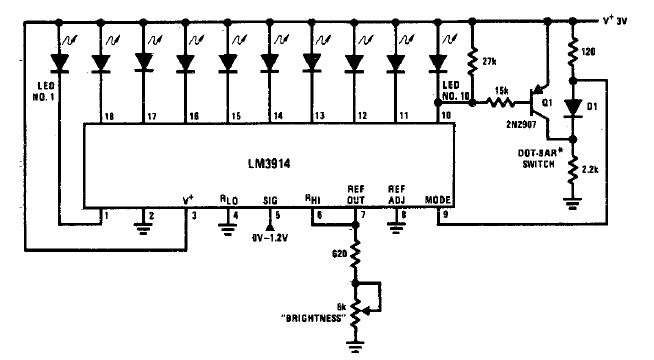

This circuit is from the LM3914 manual and can be found elsewhere on this site and from other sources. The circuit can only be powered from 9 to 12 V and the adjustment of the operating range is done in the trimpot.
| Clique na imagem para ampliar |
This circuit is from the LM3914 manual and can be found elsewhere on this site and from other sources. The circuit can only be powered from 9 to 12 V and the adjustment of the operating range is done in the trimpot.
